// AUDIO_HAXOR — WALKTHROUGH

Scan All — the unified walker

Click the Scan All button (🗲) in the header to dispatch scan_unified. The Rust side (src-tauri/src/unified_walker.rs) performs a single filesystem pass over the union of every configured scan-root list, classifies every encountered file, and fans progress events into the same per-type event streams as standalone scans. This is dramatically faster than running six separate scanners — each directory is opendir'd once, not six times.

Before dispatching the scan proper, the frontend calls prepare_unified_scan to snapshot the root set and produce a deterministic scan-run ID you can reference later in the History tab.

Under the hood the scan is a Rayon-parallel walker — the thread count comes from Thread pool multiplier × core count (see step 02). Progress batches are rate-limited by the UI update throttle so the WebView doesn't drown in events.

Stop, resume, and the header state machine

• Scan All (id="btnScanAll") — visible when idle. Dispatches scan_unified.
• Stop All (id="btnStopAll") — visible during an active scan. Calls stop_unified_scan which signals every walker to abort gracefully at the next directory boundary.
• Resume All (id="btnResumeAll") — only visible when one or more walkers have been paused. Resumes by dispatching per-type scans with the stop flag cleared.
• Scan status badge — id="scanStatusBadge" — free-form status text (e.g., "Walking /Volumes/Samples (24k / ~180k)") streamed from Rust.

The Stop / Scan / Resume visibility is managed in frontend/js/app.js boot sequence (lines 87–143) and toggled in response to progress events.

Prefer a single-type scan? Each tab has its own button

Sometimes you just refreshed a DAW project and only need to re-index that directory. Every inventory tab has its own scan button that dispatches only that type:

• Plugins tab → Scan — id="btnScan" → scan_plugins
• Samples tab → Scan — id="btnScanAudio" → scan_audio_samples
• DAW tab → Scan — id="btnScanDaw" → scan_daw_projects
• Presets tab → Scan Presets — id="btnScanPresets" → scan_presets
• MIDI tab → Scan MIDI — id="btnScanMidi" → scan_midi_files
• PDF tab → Scan PDFs → scan_pdfs
• Videos tab → Scan Videos → scan_videos

Each has its own hidden Resume / Stop buttons that appear mid-scan (e.g. btnResumeScan, btnStopPlugins). Shortcuts Cmd+Shift+P/S/` /R/F/E trigger Plugins/Samples/DAW/Presets/PDFs/Videos scans directly from the keyboard. The command palette also exposes per-scanner stop entries (Stop plugin scan, Stop samples scan, etc.) for granular abort without touching Cmd+. which fires every walker.

Progress events

Each scanner emits a typed progress stream via Tauri's event bus:

• scan-progress — plugins. phase: 'start' | 'scanning', includes processed/total counts and a batch of plugins[].
• audio-scan-progress — samples. Same shape with a samples[] batch.
• daw-scan-progress — DAW. projects[] batch.
• Similar events for presets, MIDI, PDF, videos.
• update-progress — KVR update checks, with plugins[] whose update status just changed.
• content-dup-progress — content-level duplicate scan (see step 05).

The frontend subscribes in each tab's JS module and appends streaming rows to the in-memory buffers while SQLite catches up.

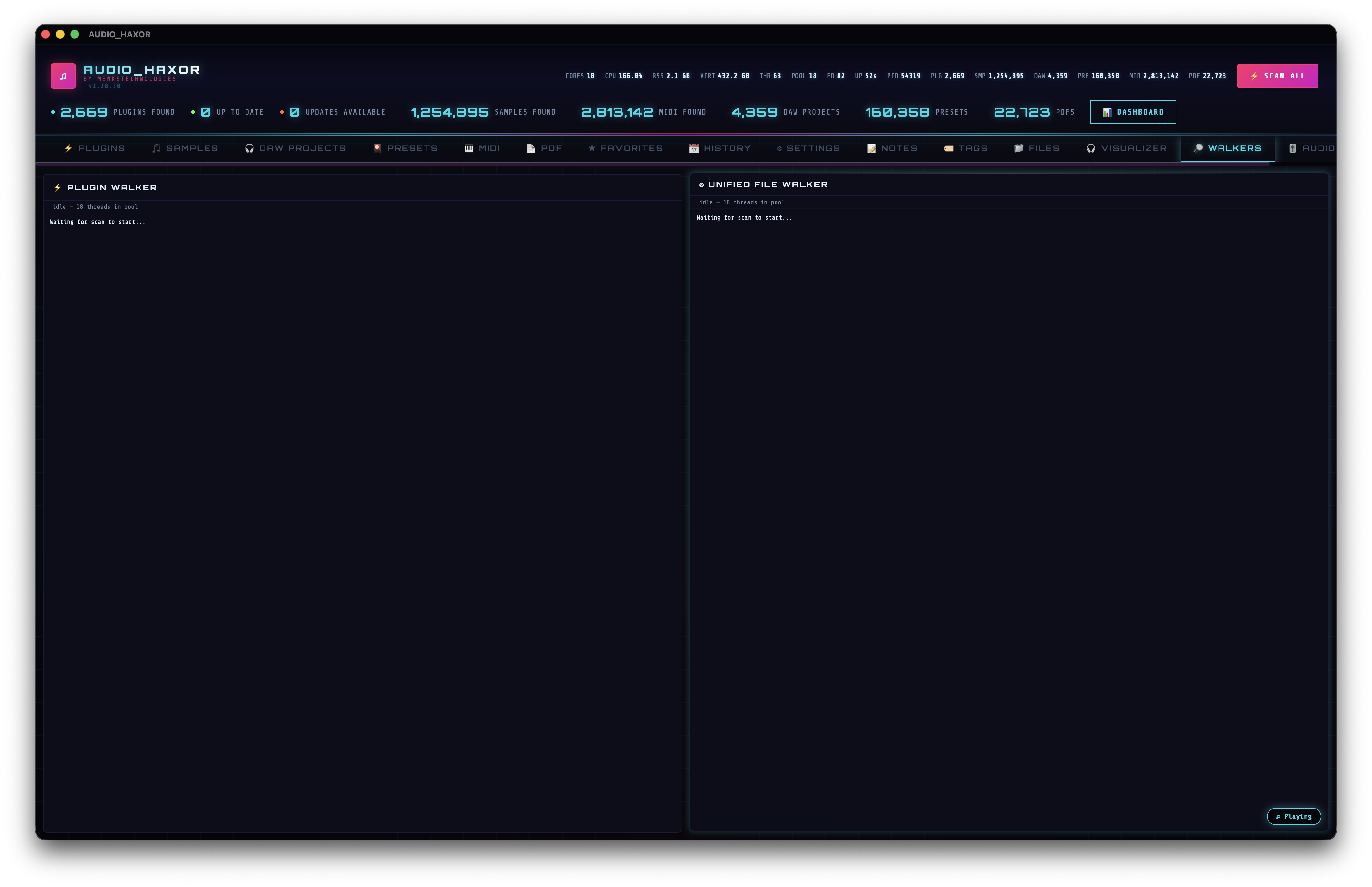

The Walkers tab — F5

Switch to Walkers with F5 (or click the tab). This is a live HUD for every active walker, polled at 500 ms cadence (_walkerInterval in frontend/js/walker-status.js) via get_walker_status. The payload returns an array of directories currently being visited by each scanner plus its busy flag.

The layout is a draggable two-tile grid:

1. Plugin tile — walkerTilePlugin. Streams the directory currently being visited by the plugin walker. Header text "scanning — N threads | M dirs in buffer" while busy, "idle — N threads in pool" when idle.
2. Unified File Walker tile — walkerTileUnified. Streams whichever sub-walker under scan_unified is most recently active (audio / DAW / preset / MIDI / PDF / video). Hidden when idle; appears the moment scan_unified or any of the per-type tab scans fire.

Each tile is a scrolling ring buffer — newest at the bottom, older entries scrolling up. Hovering a directory shows the full path in a native title tooltip. The grid is drag-reorderable (initDragReorder(grid, '.walker-tile', 'walkerTileOrder', ...) at frontend/js/walker-status.js:129) and the order persists; the drop emits a toast.reordered_walker_tiles toast like every other reorder surface (see step 13 for the universal toast catalog).

Idle backoff — why the HUD pauses

The Walkers tab stops polling after 10 consecutive idle reads (≈5 seconds), and pauses entirely when the app window is minimized, unfocused, or hidden. This is driven by the shared ui-idle.js module which emits a ui-idle-heavy-cpu event and adds html.ui-idle-heavy-cpu for CSS to pause ambient animations. When you return to the tab or another scan starts, polling resumes automatically on the next visibility change.

Keyboard shortcuts for scanning

Cmd+S               Scan all
Cmd+.               Stop all scans
Cmd+Shift+P         Scan plugins only
Cmd+Shift+S         Scan samples only
Cmd+Shift+`         Scan DAW projects only
Cmd+Shift+R         Scan presets only
Cmd+Shift+F         Scan PDFs only
Cmd+Shift+E         Scan videos only
Cmd+Shift+Y         Stop PDF scan
Cmd+Shift+Q         Stop video scan
Cmd+Shift+U         Check plugin updates (KVR)
Cmd+Shift+X         Build plugin xref index
Cmd+Shift+B         Build fingerprint cache
Cmd+Shift+V         Start BPM/key/LUFS analysis
Cmd+Shift+C         Stop BPM/key/LUFS analysis
Cmd+Shift+,         Start content-dup scan
Cmd+Shift+.         Stop content-dup scan
Cmd+Shift+F5        Start all background jobs
Cmd+Shift+F6        Stop all background jobs
Cmd+Shift+Backspace Reset all scans / clear all caches
F5                  Jump to Walkers tab

The command palette (step 09) exposes a dedicated entry for every per-scanner stop, every background-job start/stop, and every export/import — easier to discover than memorising the Cmd+Shift table above.
