// AUDIO_HAXOR — WALKTHROUGH

Before you generate: prerequisites

The generator selects samples from the SQLite library using BPM and musical-key metadata. Make sure these are populated first:

1. Scan samples into the library — Samples tab (step 05) or Cmd+Shift+S.
2. Run BPM / key / LUFS analysis — Cmd+Shift+V or the ALS tab’s own Run Analysis button (#alsAnalysisBtn). The status line (#alsAnalysisStatus) shows analyzed / total / unanalyzed counts. The tab surfaces this because key-matched selection falls back to filename heuristics without it.
3. (Optional) Curate the pool with the Blacklist / Whitelist modals — paths on the blacklist never get selected; directories on the whitelist scope selection to just those trees.

Audio-based category inference fallback. When filename / path heuristics yield zero matches for a slot — long-tail manufacturer names the manufacturer-signal tables in SAMPLE_CATEGORIZATION.md have not learned yet, or generic file names like One.wav — the selector consults stored audio analysis fields (LUFS, spectral centroid, transient density, length bucket) to decide whether the sample looks like a kick, hat, pad, etc. Generation will not silently leave the slot empty. Coverage of this path improves the more samples you analyze, so an analyzed library always produces fuller arrangements than an un-analyzed one.

Open the tab

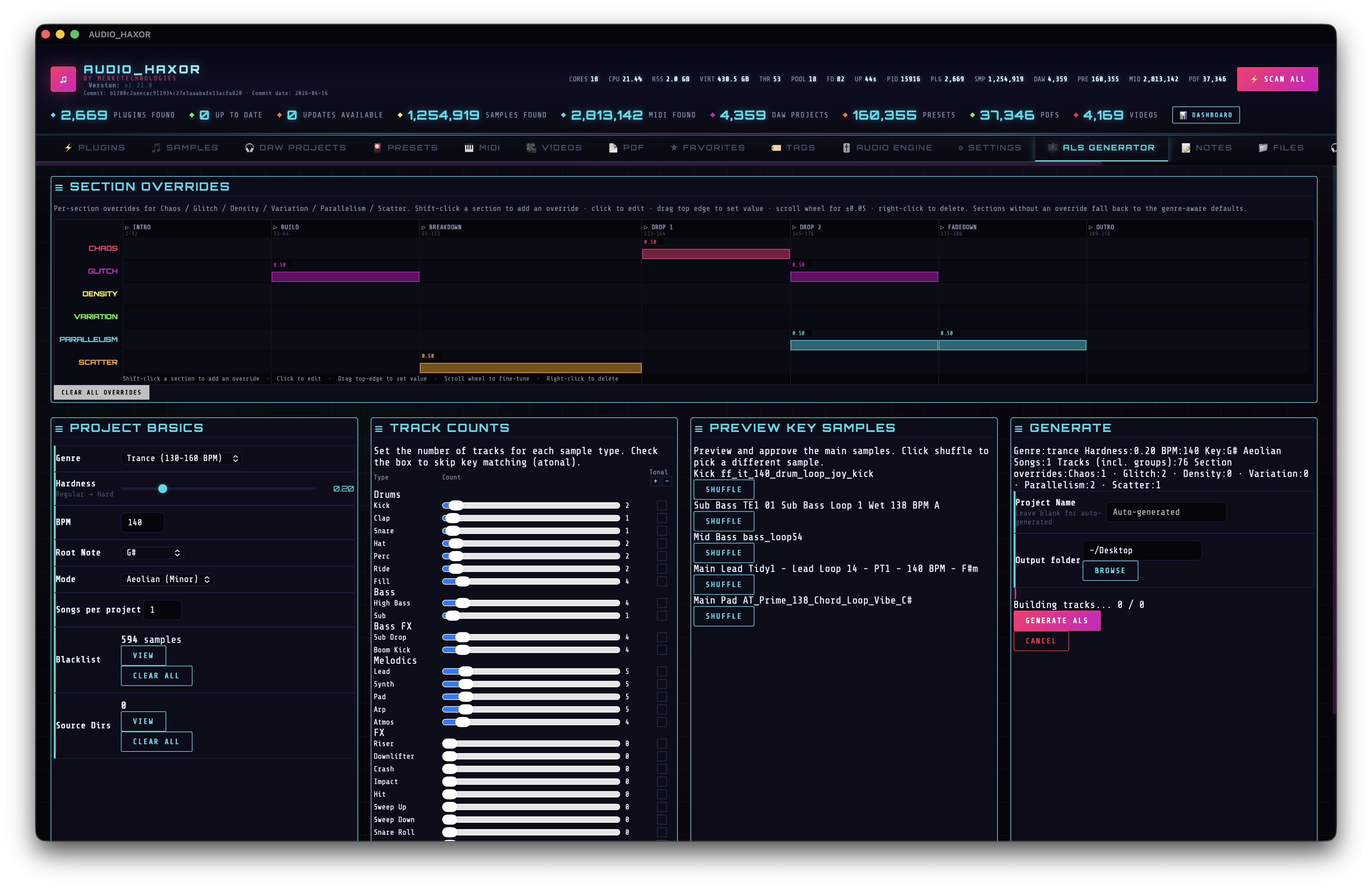

Click the 🎼 ALS Generator tab at the end of the tab bar, between Audio Engine and Settings (data-tab="alsGenerator" in frontend/index.html). There’s no default keyboard shortcut bound — the command palette (Cmd+K) can jump here too.

Global controls

Top strip of the panel. Every field persists to prefs so you can refine across sessions.

• Genre (#alsGenre) — Techno, Schranz, or Trance. Genre drives arrangement length (224 / 208 / 256 bars), default BPM/hardness, and the sample-category fallback SQL patterns.
• BPM (#alsBpm) — 120–200. Defaults follow genre (Techno 132, Trance 140, Schranz 155). The tempo is baked into warp markers so loops stretch cleanly.
• Hardness (#alsHardness) — 0.00–1.00. Biases selection toward heavier / softer kicks and leads when the sample library has a hardness score.
• Key — root note (A–G) plus mode (Ionian / Dorian / Phrygian / Lydian / Mixolydian / Aeolian / Locrian). Samples with matching key_name are preferred; mismatched but relative-minor-of-major entries are allowed.
• Atonal — global override that ignores key. Useful for noise / industrial / schranz material.
• Songs — 1–10. Each song gets its own bar range (song length + 32-bar gap) and re-rolls sample selection from the pool, so arrangements diverge across the same .als.
• Output path (#alsOutputPath) — target directory picker; the filename is auto-generated from genre + hardness + key + seed unless you override Project name.
• Seed (#alsSeed, #alsSeedLocked) — optional. See the Seed / reproducibility section below.

Seed / reproducibility

Every random choice the generator makes — which samples win the shuffle-within-score tie-break, where scatter hits land on the 1/16 grid, which positions become fills or glitches, how the chaos gaps carve up a bar, which tracks drop out under parallelism, which 8-bar blocks receive density accents — derives from a single seed. Same seed + same config = bit-identical arrangement.

Controls live at the bottom of the Generate section, next to Project Name and Output folder:

• Seed field (#alsSeed) — decimal string. Leave blank to let the backend draw a fresh random seed for this generation only. Whatever seed was used is echoed back and populated into the field after the run (look for the “Seed: 12345” line in the result card), so you can see exactly what produced the output you just got.
• 🎲 Randomize ([data-action="alsRandomizeSeed"]) — drops a fresh random 53-bit seed into the field. Chose 53 bits deliberately: it’s Number.MAX_SAFE_INTEGER, so any seed that ever shows in the wizard round-trips losslessly through JS — copy one out of the result card, paste it back in later, and you get the same project.
• 🔒 Lock (#alsSeedLocked) — when ticked, the current seed is preserved across app restarts via prefs.alsGeneratorPrefs. When unticked, restoreAlsPrefs drops the stored seed on startup so the next generation rolls fresh — this is the guard against “why does every generation sound identical now?” after you leave the app running with a seed in the box.

Typical workflow:

1. Leave the field blank. Press Generate. Listen to the result.
2. You like it. Tick 🔒 Lock. The seed that made it is already in the field (populated from the result card). Next Generate produces the same arrangement — tweak only the parameters you want to explore (e.g. raise hardness, or swap Techno to Schranz) and regenerate.
3. You want to try something new. Hit 🎲 (or clear the field) and Generate again.

Implementation notes

• Wizard sends seed as a string so u64 seeds up to u64::MAX (say, pasted from a blog post that uses a 64-bit hash) round-trip without JS Number precision loss. The Rust side accepts either numeric or string form via deserialize_seed in src-tauri/src/als_project.rs; empty or whitespace-only strings map to None, whereas non-numeric strings surface as hard errors rather than silently being dropped.
• generate_als_project in src-tauri/src/lib.rs resolves the concrete seed via config.seed.unwrap_or_else(rand::random). The same seed feeds both the generator and generate_project_name(config, seed), so the word-pattern portion of the filename is also deterministic; the YYYYMMDD_HHMMSS suffix keeps two locked-seed runs from overwriting each other on disk.
• Seed threading uses a thread-local StdRng in src-tauri/src/track_generator.rs. init_gen_rng(seed) runs at the top of track_generator::generate and clear_gen_rng() runs on every exit path (success and error alike, via a generate_inner() split). Randomness sites in that module — including generate_swoosh_arrangements, generate_scatter_hits, generate_random_fills, generate_glitch_arrangements, apply_parallelism, apply_variation, apply_chaos_to_arrangements, apply_density_per_section, apply_glitch_edits, and the sample-shuffle tie-break in query_samples_internal — pull via with_gen_rng(|rng| …). When no generation is active, with_gen_rng seeds a fresh StdRng from wall-clock nanoseconds so unit tests that call helpers directly still produce output.
• Rust tests: test_generate_project_name_deterministic_with_seed and test_generate_project_name_varies_with_seed in als_project.rs; test_seeded_helper_is_deterministic, test_different_seeds_produce_different_output, and test_helper_works_without_generate_init in track_generator.rs’s additional_tests module.

Per-type track counts

A grid of sliders (0–50 each) — one per track type: KICK, CLAP, SNARE, HAT, PERC, RIDE, FILL, BASS, SUB, LEAD, SYNTH, PAD, ARP, RISER, DOWNLIFTER, CRASH, IMPACT, HIT, SWEEP UP, SWEEP DOWN, SNARE ROLL, REVERSE, SUB DROP, BOOM KICK, ATMOS, GLITCH, SCATTER, VOX, BREAKBEAT, HARDCORE KICK, KICK LAYER (group of three children: PUNCH / RUMBLE / NOISE).

Set a slider to 3 and you get KICK 1, KICK 2, KICK 3 — three parallel tracks with different samples and gradually-layered entry/exit points (Layer 1 plays the full arrangement, Layer 2 trims one section from each end, and so on). Set a slider to 0 and the type is omitted; group buses are only emitted when they have at least one child.

Adjacent to each slider is a tonal toggle — when on, that type must respect the project key (no atonal samples allowed), even if the global Atonal flag is off. Useful when you want atonal percs but tonal basses.

Specialty kick + breakbeat tracks

• HARDCORE KICK — pulled by category “hardcore_kick”: distorted / overdriven kick samples, schranz-friendly. Defaults to non-zero for the Schranz genre and zero for Techno / Trance, but the slider lets you crank it on any genre. Routed under the KICKS group like the standard KICK track, so the same group sidechain ducks the rest of the mix off it.
• KICK LAYER (PUNCH / RUMBLE / NOISE) — one slider that emits a 3-track group: a punch child (transient body), a rumble child (sub tail), and a noise child (top-end hiss + fizz). Each layer queries its own sample category so you can dial them independently in Ableton without re-printing a mono kick. Group bus KICK_LAYER sits under KICKS; group sidechain still keys off the parent KICKS bus.
• BREAKBEAT — chopped break loops on the drum group. Available across all genres; mainly useful for breakbeat / jungle-leaning sections, but lands cleanly on top of techno / trance arrangements too. Selector picks loops whose detected BPM is a multiple of the project tempo so warp markers don’t mangle the hits.

Pre-drop fill pattern

Derived from real schranz template analysis: the four bars before every drop receive a pre-drop fill — a snare roll accelerating from 1/8 to 1/16 to 1/32, a long filtered downsweep on the FX bus, and an impact one-shot that lands on the downbeat of the drop. The pattern is emitted by the arrangement engine on top of whatever the per-type sliders chose, so you don’t need to allocate sliders for it — it uses your existing SNARE ROLL, SWEEP DOWN, and IMPACT tracks if they exist (and silently drops the layer otherwise).

Section timeline (chaos / glitch / density / variation / parallelism / scatter)

frontend/js/als-timeline.js draws a 6-lane canvas below the sliders. Each lane represents one dynamics parameter. The lanes are subdivided into 8-bar blocks — one cell per Ableton phrase — so you can shape dynamics at phrase granularity, not just per 32-bar section. Section names and their bar ranges remain as visual labels at the top, with heavier vertical dividers where each section begins.

Block count per genre (every genre lays its sections on an 8-bar grid, using the genre’s default section lengths — users can override these):

• Techno — 28 blocks across 224 bars (7 sections × 4 blocks).
• Trance — 32 blocks across 256 bars (48-bar breakdown and outro get 6 blocks each).
• Schranz — 26 blocks across 208 bars (16-bar breakdown and outro get 2 blocks each).

Resizing sections (per-genre)

Section bar lengths are editable. Every section has a draggable handle on its right edge — two short cyan tick marks inside the header row. Hover the edge: cursor becomes col‑resize. Click and drag:

• Dragging adjusts the preceding section’s length, pushing or pulling every later section along with it.
• Drag snaps to the 8-bar grid. Minimum section length is 8 bars (1 block). Maximum is 128 bars (16 blocks).
• A cyan ghost line follows the cursor while you drag; the bar-count label (e.g. “BREAKDOWN: 40 bars”) updates live. Nothing commits until you release the mouse — on release the canvas reflows once to the new layout and the value is saved.
• Pixel→bar mapping is frozen at mousedown so drag feels linear (the grid doesn’t auto-resize under your cursor). Cursor movement always produces proportional bar movement for the whole gesture.

Lengths are persisted per genre in prefs under alsSectionLengthsByGenre. Switching the Genre dropdown loads that genre’s stored lengths (or its defaults if you haven’t touched it yet). The IPC payload to the Rust generator includes your current lengths, so generated .als files use your section sizes — setting trance outro to 32 means Ableton opens a 32-bar outro, not 48.

Arrangement patterns are remapped at generation time from the canonical 224-bar Techno reference layout onto your chosen layout (see track_generator::remap_bar_range). Shrinking a section clips the tail of the template pattern to fit; extending produces a silent tail beyond the canonical template length — the template was written for 32-bar sections, so blocks past bar 32 of any section have no generator content until the arrangement engine gets the full phrase-pattern rewrite.

Heads-up: if you shift an earlier section’s length, later sections slide along absolute bar positions, and any chaos/glitch/etc. overrides you’ve pinned in the shifted range will fall in unexpected places. The overrides themselves stay put (they’re keyed by absolute bar, not section-relative). Right-click to clear + re-pin if anything ends up where you didn’t intend.

Interactions on any 8-bar block (FL Studio-style paint + erase):

• Left-click and drag (primary gesture) paints every block the cursor crosses in any lane. The paint value is captured from the starting block: clicking an empty block paints 0.5; clicking a pinned block paints that block’s value across the whole gesture — perfect for extending a region to its neighbors or stamping the same value down a diagonal. Cursor becomes a cyan paintbrush over the grid.
• Left-click without dragging still acts like a single click: pins (or re-uses) 0.5 and opens the popover slider for fine-tuning.
• Right-click and drag erases in any lane. A single right-click clears one block; dragging with the right button held clears every block the cursor crosses — sweeping a diagonal wipes a rectangular region in one gesture. Cursor becomes a pink eraser during the drag. The native context menu is suppressed.
• Drag the top edge (top 6 px) of a pinned block to set the value by height (top = 1.0, bottom = 0.0). Top-edge drag takes priority over paint so fine-tuning one block never accidentally paints neighbors.
• Shift-click range-selects every 8-bar block between the current anchor and the clicked block, same lane (classic Finder/spreadsheet convention). After selecting, the popover slider adjusts every selected block at once — drag once, all of them get the same value. The anchor (last-clicked, cyan glow) is the reference block for the popover’s default value; other selected blocks get the same cyan outline without the glow. Shift-click in a different lane degrades to a fresh single-select (so you can start a new anchor there). Shift-click is pure selection — it doesn’t pin any values; only dragging the popover slider pins them.
• ⌘/Ctrl-click (Cmd on Mac, Ctrl elsewhere) fills a linear ramp from the current anchor to the clicked block, same lane only. Start value = anchor’s current value (or 0.5 if unpinned); end value = click Y-height in the clicked block’s lane (top = 1.0, bottom = 0.0). Every 8-bar block between is linearly interpolated, inclusive. Useful for builds: click a 0.2 block, then ⌘-click 32 bars later near the top → a smooth 0.2 → 1.0 build fills the range and every filled block joins the selection so the popover can further tweak the group. While ⌘/Ctrl is held the cursor shows a cyan ramp icon to signal the mode.
• Scroll wheel over a pinned block nudges ±0.05.
• Popover slider lets you type a precise value; the title shows the section name and the block’s bar range (e.g. CHAOS · BUILD · bars 33–40).
• Clear All wipes every block override (alsSectionOverrides pref).

Persistence uses a flat bar-start → value map: { chaos: {"1": 0.5, "9": 0.3, "65": 0.8}, glitch: {…}, … }. The Rust side (als_project::SectionValues) deserializes the same shape via a BTreeMap<String, f32> with #[serde(transparent)]. Legacy prefs keyed by section names (e.g. {"intro": 0.5}) migrate on first load by fanning the value out to every 8-bar block inside that section for the current genre.

The six parameters drive arrangement behavior at block resolution: higher chaos picks more varied samples, higher density adds micro-accent clips on HAT / PERC / SYNTH / ARP / PAD tracks, parallelism widens polyphony, variation forces fresh samples on repeats, scatter randomizes one-shot hit positions, glitch triggers mini-edits. Density is the most per-block-sensitive: its resolver walks all 28+ blocks and rolls a probability per block from that block's value.

Preview pane

Below the timeline, #alsPreviewList shows up to five representative sample paths — kick, sub, mid bass, lead, pad — that match the current config. This is a dry-run: it calls als_query_samples without writing anything. Use it to sanity-check your key / hardness / blacklist setup before committing to a full generate.

The summary line (#alsSummary) estimates total tracks and clip count from the active slider config.

Generating

Press Generate (#alsGenerateBtn). The button is replaced by a spinner + progress bar. Progress events from the Rust backend stream over the Tauri event channel:

• Loading samples for song 1/N… — SQL queries against the sample pool.
• TRACK_PROGRESS:created:total — each track clone drives the bar.
• Assembling XML — track strings joined, master chain injected, NextPointeeId updated, locators stamped at every section boundary.
• Writing <filename> — gzip encoder flushes the final .als.

The Cancel button (#alsCancelBtn) flips a shared AtomicBool; the generator drops out at the next cancel checkpoint.

What ends up in the file

The generated .als is a gzipped XML document. Decompressed, you’ll see:

• Group buses — each skipped when empty. KICKS is its own top-level group (separate from DRUMS) so the kick pulse can safely feed every sidechain without feedback; HARDCORE_KICK tracks and the KICK_LAYER sub-group (punch / rumble / noise) nest inside KICKS when present. Then DRUMS (claps, snares, hats, percs, rides, fills, breakbeat), BASS (bass + sub), BASS FX (sub drops + boom kicks), MELODICS (leads / synths / pads / arps / atmos), FX (risers / downlifters / crashes / impacts / hits / sweeps / reverses / glitches / scatters / vox). Pre-drop fill clips are stamped on top of the existing snare-roll / sweep-down / impact tracks — no extra buses created.
• Per-track sends — every AudioTrack sends to Return A (Reverb) and Return B (Delay) with category-aware amounts: kick / sub / bass stay dry, drums get a light kiss, leads / arps add delay, pads / atmos run wettest. Values come from send_levels_for() in src-tauri/src/track_generator.rs.
• Group-level sidechain compression — a Compressor2 is injected into DRUMS / BASS / BASS FX / MELODICS group chains, keyed to AudioIn/Track.<KICKS_group_id>/PostFxOut. Settings: Threshold ≈ −14 dB, Ratio 4:1, Attack ≈ 5 ms, Release ≈ 150 ms. FX bus is intentionally un-ducked so risers / impacts / crashes stay transient. Template: src-tauri/src/group_sidechain_compressor_template.xml.
• Master chain — MainTrack gets an Eq8 (Band.0 as 12 dB/oct HPF at 30 Hz) and a Limiter (Ceiling −0.3 dB, AutoRelease, Lookahead, LinkChannels) injected before the template’s existing Utility. HPF first, Limiter second, Utility third. Templates: src-tauri/src/master_eq8_hpf_template.xml, src-tauri/src/master_limiter_template.xml.
• Locators at every section boundary of every song, labeled with the song’s detected key.
• Warp markers on every AudioClip so non-BPM-matching samples stretch to project tempo.
• Track colors per category — DRUMS red-ish, BASS orange, MELODICS cyan-ish, FX purple — so the mixer reads at a glance.

Verifying in Ableton

1. Double-click the .als in Finder (or open it from the shell). Ableton 11 / 12 loads.
2. Confirm the tempo matches what you set — it’s written to both the Tempo/Manual node and the first transport FloatEvent.
3. Scan the Arrangement view — you should see one labeled section locator per section per song.
4. Check the mixer: KICKS, DRUMS, BASS, BASS FX, MELODICS, FX group tracks expand into children. Each AudioTrack’s two sends have non-silent values; bass tracks show −∞ dB (dry).
5. Open any DRUMS / BASS / MELODICS group and look at its device chain — a Compressor2 with KICKS · Post FX as the sidechain source.
6. Select the Main track — Eq8 (Master HPF 30Hz) → Limiter → Utility.
7. Hit play. The kick should drive audible ducking on the bass and melodics buses.

Backend entry points (for deeper work)

• IPC: generate_als_project(config), cancel_als_generation(), als_query_samples(category, config, limit). Also sample_analysis_seed / sample_analysis_start / sample_analysis_stop / sample_analysis_stats; blacklist helpers clear_als_sample_blacklist, get_als_blacklist_count, get_als_blacklist_entries, add_to_als_blacklist, remove_from_als_blacklist; whitelist get_als_whitelist_entries, get_als_whitelist_count, add_to_als_whitelist, remove_from_als_whitelist, clear_als_whitelist. See the IPC inventory on the docs hub.
• Arrangement + emit: track_generator::generate in src-tauri/src/track_generator.rs (called from generate_als_project in lib.rs) runs sample loading → template extraction → group+track creation → post-processing → locators → master-chain injection → tempo set → gzip write. Template bytes and XML helpers live in src-tauri/src/als_generator.rs.
• Config model: src-tauri/src/als_project.rs — ProjectConfig, SectionOverrides, TrackCounts, TypeAtonal, plus the 7-section arrangement bounds per genre.
• Base template: src-tauri/src/empty_project_template.als.gz — ships with two ReturnTracks (Reverb + Delay) pre-configured and each AudioTrack template already carrying an Eq8 / Gate / Channel EQ / Compressor2 chain (sidechain present but disabled by default). The generator fills in what the template leaves dormant.
• Frontend: frontend/js/als-generator.js drives the panel; frontend/js/als-timeline.js draws the 6-lane, 8-bar-block override canvas and handles the bar-keyed prefs schema plus legacy section-name migration.

Reference documents

• ALS_GENERATION_GUIDE.md — ID management, device XML, genre patterns, implementation checklist.
• ALS_GENERATION_FINDINGS.md — gotchas from reverse-engineering real projects.
• SAMPLE_CATEGORIZATION.md — filename / path → track-category mapping.
• TECHNO_ARRANGEMENT_RULES.md — section energy flow, entry / exit points.
• CLIP_TIMING_REFERENCE.md — beat / bar math, warp-marker derivation.
• ID_MANAGEMENT.md — ID allocation and NextPointeeId bookkeeping.
