// AUDIO_HAXOR — WALKTHROUGH

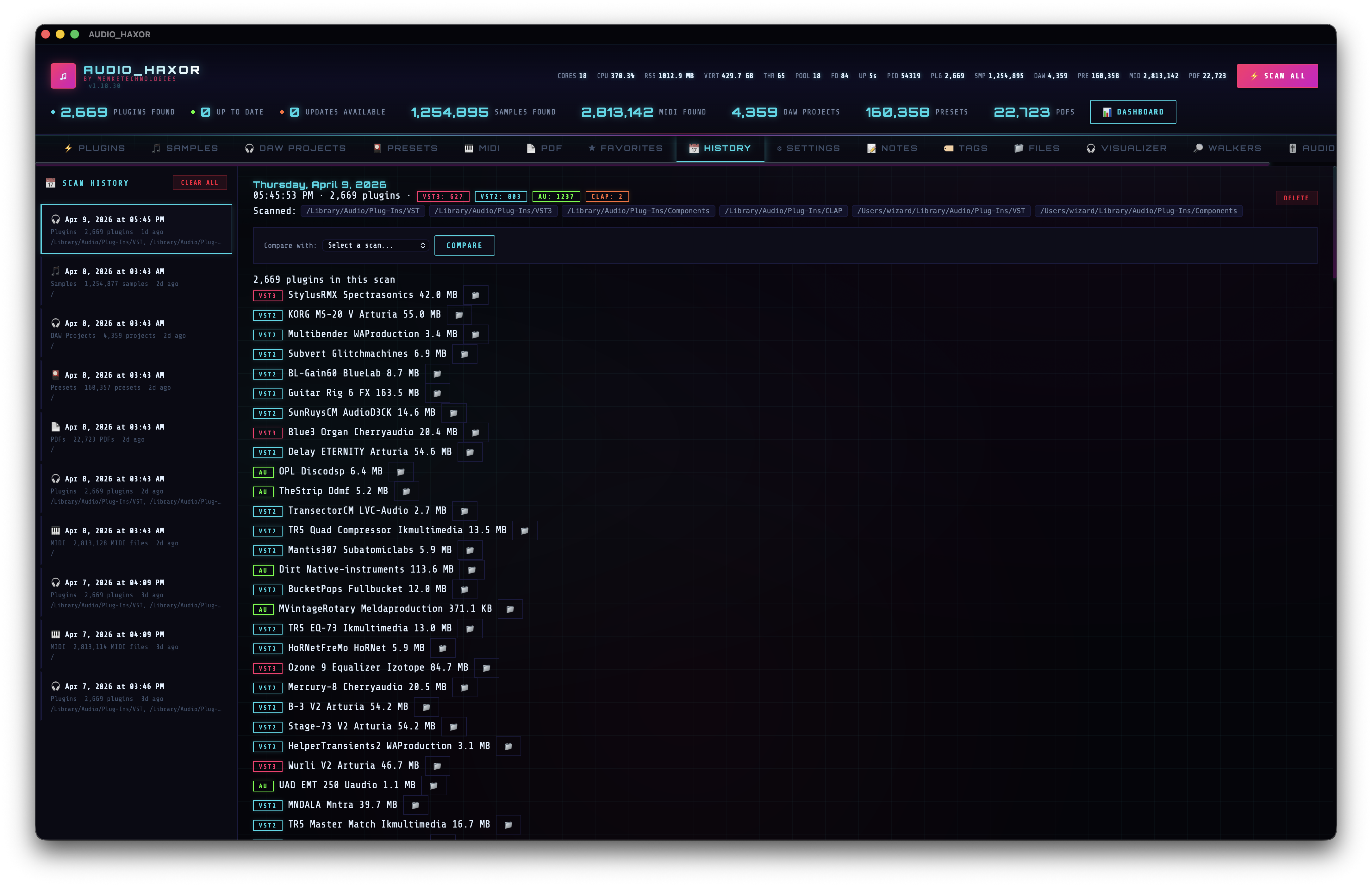

Layout

frontend/js/history.js. Two panes:

• Sidebar (.history-sidebar) — scrollable list of all scan records, merged from every inventory type. Header has "Scan History" label and a Clear All button.
• Detail pane (#historyDetail) — right side, shows the selected run's full payload with a delete button and a compare dropdown.

Sidebar items

Each history row carries the following, built by buildHistorySidebarItemHtml(s) (~line 137):

• Timestamp — absolute date/time (e.g. "Mar 10 2026 3:45 PM").
• Scan type tag — colored label: Plugins, Samples, DAW, Presets, PDF, MIDI.
• Count — "42 plugins", "1,204 samples", etc.
• Relative time — "2 hours ago".
• Roots hint — hover to see the full root paths that were scanned.
• Selected state — .selected class on the active row.

The sidebar renders in chunks of HISTORY_SIDEBAR_CHUNK = 100 to stay fast even when you have hundreds of runs.

Sidebar data sources

The sidebar is a merge-sort of six per-type lists:

• historyScanList — plugins (from history_get_scans).
• historyAudioScanList — audio (from audio_history_get_scans).
• historyDawScanList — DAW (from daw_history_get_scans).
• historyPresetScanList — presets.
• historyPdfScanList — PDFs.
• historyMidiScanList — MIDI.

fetchHistoryListsAndRender() (~line 75) fetches all six in parallel, merges into historyMergedList[], sorts by timestamp (newest first), and hands the result to the renderer. Selecting any row calls into a type-specific select*Scan() function that fetches the payload and populates the detail pane.

Detail pane — per-type

Each scan type has its own renderer but they share a common layout:

• Date header — weekday, month, day, year.
• Meta line — e.g. for plugin scans: "Scan: 3:45 PM, 412 plugins (VST2: 184, VST3: 192, CLAP: 18, AU: 18)". For audio scans: format counts instead of plugin type breakdown.
• Scanned roots — code blocks listing the root directories.
• Delete button — deleteScanEntry, removes this specific run from the database.
• Compare dropdown — #compareSelect, lists every other scan of the same type with its count; pair with the Compare button (runDiff).
• Diff results — #diffResults container, filled by the diff call.
• Full item list — scrollable, lazy-loads 200 rows at a time. Columns differ per type:
  • Plugins: type badge · name · manufacturer · size · open-folder.
  • Samples: format badge · name · size · open-folder.
  • DAW: format badge · name · size · date · open-folder.
  • Presets: format badge · name · size · open-folder.
  • PDFs: name · size · open-file.
  • MIDI: name · size · duration · open-file.

Diffs

Select a reference run in the compare dropdown and click Compare. The frontend calls the type-specific diff IPC:

• history_diff(oldId, newId) — plugins.
• audio_history_diff(oldId, newId) — samples.
• daw_history_diff(oldId, newId) — DAW.
• preset_history_diff, pdf_history_diff, midi_history_diff.

Each returns arrays of added and removed items. The UI renders two colored sections:

• Added — .diff-section.diff-added — count badge + list.
• Removed — .diff-section.diff-removed — count badge + list.

If both arrays are empty, the pane shows a neutral "no differences" message via historyDiffMatchHtml().

Managing the archive

• Delete one run — the red button in the detail pane.
• Clear all history of one type — from the detail pane's controls or the per-tab settings.
• Clear all history (every type) — Settings → Clear all history or the sidebar's Clear All button.
• Automatic pruning — Settings → Prune old scan snapshots + Scan history to keep. On startup, runs beyond the last N per scanner are deleted.

Count field compatibility

Scan records have two possible count field shapes — legacy snake_case (plugin_count, sample_count, project_count, etc.) and current camelCase (pluginCount, sampleCount, projectCount, etc.). The helper historyScanCountField(s, camelKey, snakeKey) (~line 24) reads either format so upgraded databases keep rendering without migration.
